The new Toolcat™ 5600 is an entirely new concept in utility work machines. It was developed by Bobcat Company after hundreds of hours of research with customer discussion groups around the nation.

You told us what you wanted in a machine that would excel at large property maintenance and commercial grounds keeping. Bobcat engineers went to work, and after years of planning, designing and testing, created a machine like no other on earth—the Toolcat 5600!

The first of its kind
There's never been a machine like the 5600. It's designed to have all the best features of a utility loader, pickup truck and attachment carrier. It will not only take you and a co-worker to the jobsite, it will also complete the job like no other machine can!

Seeing is believing
The revolutionary Toolcat 5600 is designed to out-lift, out-pull and out-haul other machines. Discover the performance yourself.

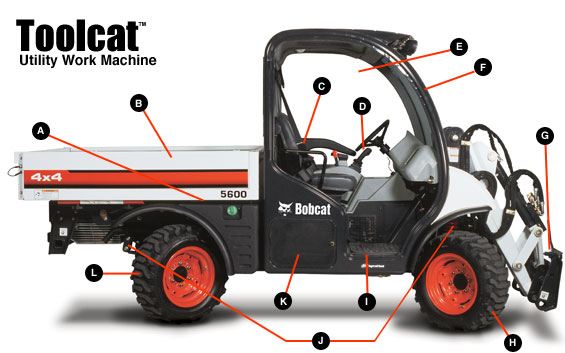

  Features of the Toolcat Utility Work Machine
A. 44 Horsepower Kubota Diesel Engine
B. Cargo Area with Hydraulic Dump
C. Two-Seat Cab
D. Easy-To-Use Controls
E. Great Visibility
F. Roll-over and Falling Object Protection (ROPS/FOPS approved)
G. World-Famous Bobcat Attachments
H. 4-Wheel Drive
I. Easy Entry and Exit
J. Front AND Rear Suspension
K. Hydrostatic Drive
L. All-Wheel Steer

Machine
Engine Make:  Kubota
Rated HP:  46 HP (34.3 kW)
Engine Fuel:  Diesel
Shipping Weight:  4755 lbs (2157 kg)
Length:  147.5 in (3746 mm)
Width:  60.5 in (1537 mm)
Height:  80.5 in (2044 mm)
Wheelbase:  85 in (2159 mm)
Turning Diameter:  17 ft (5182 mm)
Fuel Tank:  10.5 gal (39.8 L)
Tire Size:  27x10.5-15, 6PR, Lug Tread
Ground Clearance:  13.5 in (343 mm)
Travel Speed - Low:  10 mph (16 kmh)
Travel Speed - High:  18 mph (29 kmh)
Travel Speed - Reverse:  10 mph (16 kmh) 		Loader
Rated Operating Capacity (SAE):  1500 lbs (680 kg)
Lift Height:  84.3 in (2141 mm)
Max Reach:  42.8 in (1087 mm)
Dump Angle @ Maximum Height:  38 deg

Attachment Systems
Vehicle Steering:  Steering Wheel
Pump Capacity:  18 GPM (68.1 L/min)
System Relief @ Quick Couplers:  3045 psi (207 BAR)
Bob-Tach Attachment System:  std

Cargo Box and Machine Capacities
Cargo Box Volume:  18 cubic ft (0.51 m3)
Cargo Box Length:  61 in (1549 mm)
Cargo Box Width:  52 in (1321 mm)
Cargo Box Height:  10 in (254 mm)
Bed Height From Ground:  37 in (940 mm)
Cargo Box Maximum Load:  2000 lbs (907 kg)
