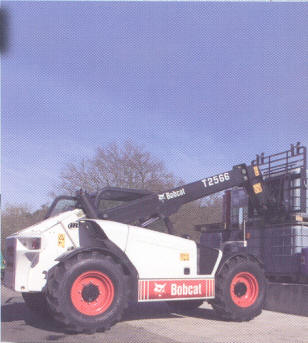

T2566 Tele-Handler

With a lift height of 6.45m, the T2566 is ideal for work in agriculture as well as in construction, for example, on urban redevelopment sites.  Its compactness and performance are also a plus in industrial environments, while its simplified maintenance and the high degree of protection for mechanical and hydraulic components are especially valuable for the hire market.

Rated Capacity:  2500 kg
Lifting Height:  6450 mm
Max Reach:  4050mm
Capacity at Max Height: 2200 kg
Capacity at Max Reach: 900 kg
Travel Speed - Low:  0-8 km/h
Travel Speed - High:  0-30 km/h


Width:  1984 mm
Length (with carriage):  4905 mm
Height:  2096 mm


Engine Make:  Perkins
Engine Model:  1104C-44T (Turbo)
Engine Fuel:  Diesel
Engine Cooling:  Liquid
Number of Cylinders:  4
Horsepower (SAE NET):  100 HP (74.5 kW)
Displacement:  269 cubic in (4.4 L)
Fuel Tank:  110 L
