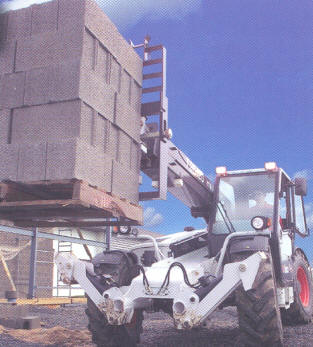

T35120L Tele-Handler

The T35120 offers the features of larger models, including the advanced new boon, in a compact machine.  It is designed to handle a wide range of materials handling applications in construction and rental.  Stabilizers are available for those applications which require increased stability when working at extended heights or reach.

Rated Capacity:  3500 kg
Lifting Height:  11620 mm
Max Reach:  8100mm
Capacity at Max Height: 2300 kg
Capacity at Max Reach: 400 kg
Travel Speed - Low:  0-8 km/h
Travel Speed - High:  0-30 km/h


Width:  2216 mm
Length (with carriage):  5425 mm
Height:  2382 mm


Engine Make:  Perkins
Engine Model:  1104C-44T (Turbo)
Engine Fuel:  Diesel
Engine Cooling:  Liquid
Number of Cylinders:  4
Horsepower (SAE NET):  100 HP (74.5 kW)
Displacement:  269 cubic in (4.4 L)
Fuel Tank:  140 L
