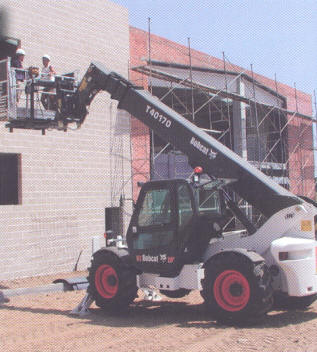

T40170 Tele-Handler

With its ability to lift to a maximum height of 17.4 m and its capacity of 4 tonnes, the T40170 is the ideal model for lifting both materials as well as people (via the man platform) on any kind of job site.  It is equipped as standard with a longitudinal and lateral stability control combined with an Aggravating Movements Arrester (AMA).

Rated Capacity:  4000 kg
Lifting Height:  17430 mm
Max Reach:  13670mm
Capacity at Max Height: 2500 kg
Capacity at Max Reach: 560 kg
Travel Speed - Low:  0-8 km/h
Travel Speed - High:  0-30 km/h


Width:  2334 mm
Length (with carriage):  6207 mm
Height:  2473 mm


Engine Make:  Perkins
Engine Model:  1104C-44T (Turbo)
Engine Fuel:  Diesel
Engine Cooling:  Liquid
Number of Cylinders:  4
Horsepower (SAE NET):  100 HP (74.5 kW)
Displacement:  269 cubic in (4.4 L)
Fuel Tank:  140 L
