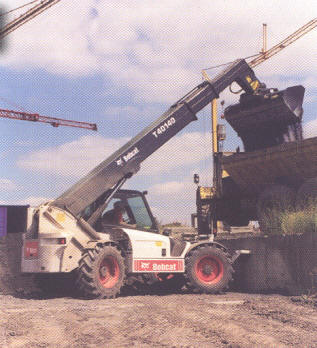

T40140 Tele-Handler

The T40140 model is in the 4 tonne lifting class and its impressive lifting height and reach make it ideal for large building sites for masonry, roofing and framework and for applications in industry.  Thanks to proportional extension on the high lifting models, the telescopic action of the boom sections is proportional and smooth, without loss of hydraulic power.

Rated Capacity:  4000 kg
Lifting Height:  13610 mm
Max Reach:  9700mm
Capacity at Max Height: 4000 kg
Capacity at Max Reach: 1300 kg
Travel Speed - Low:  0-8 km/h
Travel Speed - High:  0-30 km/h


Width:  2334 mm
Length (with carriage):  6061 mm
Height:  2473 mm


Engine Make:  Perkins
Engine Model:  1104C-44T (Turbo)
Engine Fuel:  Diesel
Engine Cooling:  Liquid
Number of Cylinders:  4
Horsepower (SAE NET):  100 HP (74.5 kW)
Displacement:  269 cubic in (4.4 L)
Fuel Tank:  140 L
