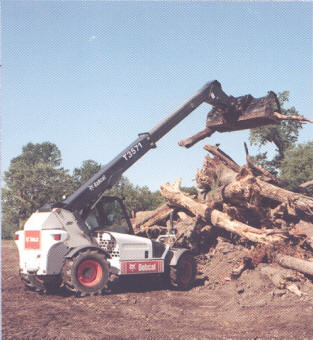

T3571[L] Tele-Handler

The T3571 is the multi-purpose machine par excellence.  With its high reach, the T3571 is ideal for loading and un-loading lorries from the side.  The hydrostatic transmission gives operators accurate control of the machine in any application.  The geometry of the boom also makes it an excellent loader.

Rated Capacity:  3500 kg
Lifting Height:  7120 mm
Max Reach:  4060mm
Capacity at Max Height: 3000 kg
Capacity at Max Reach: 1350 kg
Travel Speed - Low:  0-8 km/h
Travel Speed - High:  0-30 km/h


Width:  2216 mm
Length (with carriage):  5129 mm
Height:  2295 mm


Engine Make:  Perkins
Engine Model:  1104C-44T (Turbo)
Engine Fuel:  Diesel
Engine Cooling:  Liquid
Number of Cylinders:  4
Horsepower (SAE NET):  100 HP (74.5 kW)
Displacement:  269 cubic in (4.4 L)
Fuel Tank:  140 L
